Luscus: molecular viewer and editor for MOLCAS
© Kovačević and Veryazov; licensee Springer. 2015
- Received: 26 June 2014
- Accepted: 3 March 2015
- Published: 29 April 2015
The novel program for graphical display and editing of molecular systems, luscus, is described. The program allows fast and easy building and/or editing different molecular structures, up to several thousands of atoms large. Luscus is able to visualise dipole moments, normal modes, molecular orbitals, electron densities and electrostatic potentials. In addition, simple geometrical objects can be rendered in order to reveal a geometrical feature or a physical quantity. The program is developed as a graphical interface for the MOLCAS program package, however its adaptive nature makes possible to use luscus with other computational program packages and chemical formats. All data files are opened via simple plug-ins which makes easy to implement a new file format in luscus. The easiness of editing molecular geometries makes luscus suitable for teaching students chemical concepts and molecular modelling.
- Molecular modelling
- Molecular editor
Visualisation of various data in theoretical chemistry plays an important role in the conduction of modern scientific research in the field. Computational possibilities of modern software routinely used in the quantum chemistry and the molecular mechanics and dynamics (MM/MD) can handle very large molecular systems containing hundreds or thousands of atoms. Without advanced graphical tools, designed for a specific branch of computational codes, it is very complicated task to create an input and proceed with calculations.
Although the majority of graphical user interface (GUI) programs used in quantum chemistry have a focus on the preparation of initial molecular geometry, the post processing and visualisation of the results is also extremely important. This is especially the case if the study can not be performed as a “black box” calculation. Many advanced computational techniques, for example, multiconfigurational methods in quantum chemistry , require intermediate steps, with verification and altering intermediate results to be reused in the following up calculations.
Graphical user interfaces used in quantum chemistry (and in MM/MD simulations) can be classified as a general tools (not connected to any particular code), or specific to some particular computational code. The first group includes molden , rasmol , avogadro  and many others. These graphical programs can perform visualisation of coordinates and some computed properties. The clear advantage of these projects is a generic interface, and thus, an easy learning curve for the novice users. However, the integration level between general purpose GUI and the computational codes is usually very restricted. Another group includes GUI developed exclusively for specific computational software. It is usually the case for the commercial software: GaussView , TmoleX , Spartan  and others. Although a graphical package, which is tightly bound to a computational code, has an obvious advantage, the end user might find inconvenient the necessity to learn a separate interface for any new code.
Luscus is a novel program for molecular modelling and analysis of results from quantum-chemical program packages. The graphical interface is designed and is written to match computational package, MOLCAS [8,9], which includes a set of computational codes for various quantum chemical calculations from Hartree-Fock (HF) and Density Functional Theory (DFT) to the multiconfigurational theory and the coupled cluster theory. By design luscus communicates with a computational code via transparent and simple interface allowing easy integration with other programs as well, which makes it a universal tool for computational chemists. Luscus uses external plug-ins for reading and writing files. These plug-ins are usually simple programs (or scripts) which are performing simple tasks of converting data from one format to another. This technology increases the flexibility, since implementing a new format for a file with chemistry related data can be done without changing of GUI, but by adding or modifying of the corresponding plug-in.
Another consideration we used in the design of luscus code is the portability and the minimal dependence on external graphical libraries. It leads to a light-weighted graphical program which can be easily installed on virtually any platform.
Luscus is easy to learn and easy to use program. It is based on GV [10,11] code, which was the main GUI for MOLCAS during the last decade. GV has only primitive user interface provided by OpenGL/glut library. Luscus keeps all capabilities of GV and includes new features and improvements, but with more friendly and intuitive interface.
User interface is created with the gtk+ library, and 3D visual display is made with the OpenGL programming library. These libraries have become widespread, on many architectures, and this commonness ensures the portability of luscus code on all common computer platforms and operating systems. These libraries make possible interaction with the molecular model displayed on the screen.
There are various file formats that become the standard in different areas in chemistry, for instance PDB file format for biomolecules and CIF file format for crystallographic data. In computational chemistry, in contrary, the standardisation of data formats is still far away from the completion . The most successful attempt to design a standard format in computational chemistry is based on introduction of Chemical Markup Language (XML/CML) [13,14]. However, until now, very few computational codes accepted these kind of file formats both as an user input and as an intermediate files.
The most widespread file format in computational chemistry is so called XYZ file, which is used for the definition of atomic Cartesian coordinates. This file format has a limited usability since it can store only trivial information about molecular geometry. The format is lacking the support of dummy atoms, environment (e.g. atomic charges), and other molecular properties.
We introduced a new file format for interaction between luscus and computational software, which is based on XML mark-up. These files can either be produced directly by the MOLCAS code, or converted from the MOLCAS output files using corresponding plug-ins in luscus.
The main purpose for introducing new file format is the transfer and the storage of visualisable data from MOLCAS[8,9] in a standard fashion. The luscus program interprets the data blocks in the file and renders them on a screen. The new format was created as a simple, human readable and editable file. The luscus file format follows XML/CML format[13-16] where data are structured in sections, where each section contains a well defined set of data. All sections in a file produce a graphical element on a screen, thus luscus file format can be regarded as a XML extension to the graphical representation of chemical data. The file header, however is an exception and is identical to the XYZ file. This makes a great advantage since XYZ file format is the most accepted chemical file format in molecular graphics programs, so those programs can interpret the initial portion of the luscus file as XYZ file. The another advantage of this solution is that any XYZ file is a valid luscus file (lacking definition of additional graphical elements).
An example of luscus file format is given in supplement [see Additional file 1].
Although luscus is designed as a graphical interface for the MOLCAS program package, computational codes with other chemical formats can be interpreted by luscus after they are converted by the corresponding external plug-in. When a file is opened, luscus executes a plug-in, waits until it converts the file to the luscus format and opens it. Information about all available plug-ins (file format name, plugin name, extension) is stored in a configuration file and can be customised by the user. Luscus can automatically determine file type according to the data in the configuration file or alternatively, the file type can be specified by the user. The process of the conversion of file formats is done automatically without interference with user. An example of plug-in script that uses Openbabel  for opening PDB file is given in supplement [see Additional file 2].
Plug-ins can be used for saving files as well. In the latter case, plug-in converts luscus file to the custom file format. The third kind of a plug-in uses the data stored in a luscus file, create an input for a computational code, run the calculation, and finally transform the output back to the luscus format. Since luscus can detect changes in input files, the result will be automatically displayed on the screen.
Although the primary goal of luscus is the fast visualisation on a screen, luscus is also capable to produce printing quality images of molecular systems. Many features, e.g. colour scheme, are adjustable and can be saved for a future use.
Visualisation and editing of a chemical system
Visualisation and on screen editing of atomic coordinates is an essential part of any GUI in computational chemistry. The main concept of the editing of atomic coordinates in luscus is based on user selection of an atom, a bond, an angle, or a torsion angle. Luscus provides different functionality depending on this selection. By default all operations are performed for the whole molecule. However, if one point (an atom, or a dummy atom) is selected, all operations are performed for this centre. In the same way, if a bond or an angle is selected, it becomes the main focus for editing operation.
New molecular geometries can be build (or existent geometries can be modified) by adding one by one atom, by adding a predefined molecular fragment, or by replicating existing atoms through a symmetry operation. Predefined molecular fragments are stored in separate files and users with modest computer knowledge can easily add additional fragments or modify the existent ones.
Luscus can visualise structures and chemical properties, which include more than one set of Cartesian coordinates, such as trajectories, reaction coordinates and other dynamical properties. Luscus has the ability to read normal modes from the energy Hessian calculations and visualise vibrations in a form of animated movements. Structures from several files can be shown in the same orientation, and size, since this information can be saved and retrieved upon opening another file.
Building molecules in terms of internal coordinates
The most common definition of molecular geometry, Cartesian coordinates are not convenient for building and editing molecular geometries since it is hard to imagine spatial relations of atoms in terms of numerical values of Cartesian coordinates. Even if simple operations in Cartesian coordinates are applied in the graphical interface, the exact positioning of atoms in a molecule can still pose a challenge since two-dimensional image of the modelling molecule on a screen lacks the depth. Several graphical programs  allow movements of atoms or molecular fragments by moving a mouse pointer across the screen. This method, although intuitive, poses a difficulty of building three-dimensional structures, since the movement of atoms is limited by two dimensions only.
Defining molecular geometry in terms of internal coordinates, assembled in Z-matrix is more simple task than evaluation of Cartesian coordinates for the most of the molecules, since it involves dealing with common chemical concepts like bond lengths, angles and dihedral angles. Some most popular molecular editors [2,5,18] have Z-matrix editor built-in, where users can interactively change internal coordinates. The downside of Z-matrix editors is the limitation put by definition of molecular geometry by internal coordinates since only defined set of coordinates can be edited.
Molecular geometry in luscus is defined in Cartesian coordinates, however editing is performed in internal coordinates. Internal coordinates are being adjusted with partial Z-matrices that are defined ad-hoc, by selecting atoms and thus these coordinates are not depending on the order of atoms, as in conventional Z-matrix editors. In luscus it is possible to modify any interatomic distance by selecting two atoms. Relative orientations of atoms can be adjusted by changing a valence angle or a torsional angle by selecting three or four appropriate atoms. The atom that is selected first is displayed with a different colour than other selected atoms and this atom is being moved by adjusting an internal coordinate. Editing operations can be applied either to a single atom, or to a group of atoms. In order to connect several atoms into a group one can use on screen marking by mouse (we use here term marking in order to avoid a possible confusion with term select, which is used to select a focus on a structural element of the molecule), or one can use a graphical interface to determine the group (e.g. the atoms of the same chemical element, or located on one side from a selected bond, or connected via a bond to a specific atom). When a group is defined, all operations will be performed for all atoms belonging to this group.
The flexibility of editing molecular systems can be extended by introducing dummy atoms as pivot points. In that way all operations can be performed around pivot points that are not part of the molecule itself.
Luscus also supports editing in Cartesian coordinates through a Cartesian editor. This editor supplements the aforementioned method of editing molecules in internal coordinates.
Luscus can use external computational programs (called by a corresponding plug-in) to modify coordinates, for example, to perform the geometry optimisation.
Symmetry operations become a common feature in some graphical chemistry programs that can certainly make easy building molecular structures. Symmetry operations are usually implemented as a tool for symmetrizing already build molecular structures  that moves already defined atoms into appropriate positions . Symmetry operations in luscus are implemented as a building tool, that replicates existent atoms into symmetrically equivalent positions. Luscus brings novel feature of performing a symmetry operation applied for the selected atoms only. That feature is very useful since many molecules have at least one symmetric part. Symmetry operations available are: inversion through a point (if one atom or dummy atom is selected), translation and a proper rotation around an axis (if two atoms are selected), and finally a reflection through a plane (if three atoms are selected). In cases where a symmetry operation can’t be realised with existing atoms (pivot points), additional dummy atoms can be temporarily introduced.
The use of symmetry can be demonstrated by the example of building naphthalene molecule from benzene. First, two hydrogen atoms are deleted, and the corresponding C-C bond is selected. Naphthalene structure is created by applying a rotation by 180 degrees. The same effect can be achieved, if a dummy atom is introduced in the middle of the C-C bond and the inversion operation around the dummy atom is applied.
In order to apply a symmetry operation, luscus uses a threshold in order to make a decision if two atoms are identical or not. This feature can be used for symmetrizing a molecule, or its part.
For example, if during a geometry optimisation some atoms in benzene ring move out of the plane, luscus can enforce the planar symmetry by selecting three atoms and applying mirror reflection.
If some atoms are copied to the location that is too close to an existing atom, luscus will keep only one of them (in an average position), aligning the chosen part of the molecule according the symmetry element.
In addition to applying symmetry operations, luscus can determine a symmetry group of a molecule.
Drawing geometrical objects
Luscus allows drawing simple geometrical objects as a convenient way of emphasising a geometrical feature or a physical property in the molecular structure. For instance arrow is implemented to illustrate the dipole moment of a molecule and is displayed by default on files that provide information about molecular dipole. Other potential uses are: illustration of atomic or molecular movement, dative bond, reaction coordinate etc. All geometrical objects can be defined through a number of selected atoms, as in the case with symmetry operations. Luscus can draw arrows, spheres, plains, triangles, and parallelepipeds. Defining points are not restricted to the atoms present in the molecule since a temporary dummy atoms can be introduced at any time. The geometrical objects can be combined in order to draw more complicated ones, for instance a square can be drawn from two triangles. Geometrical objects are rendered as translucent since many of them enclose a volume of space and might contain atoms inside. However, the opacity as well as colour can be adjusted.
Visualisation of orbitals
One of the most important aspect of luscus is its ability to visualise molecular orbitals and electron densities. The need for such feature arose with the MOLCAS program package. The MOLCAS program package is well known for multiconfigurational computational models. In this models, it is often necessary to visually inspect orbital in order to determine its nature  or assign it to a appropriate orbital subspace . Therefore the ability to assign orbital subspaces (frozen, inactive, RAS1, RAS2, RAS3, secondary, deleted) is built in luscus. This feature enables fast and easy performing of otherwise cumbersome task of setting orbitals into the orbital subspaces. In order to make orbital selection even more easier, all orbitals are listed together with their symmetry, energy and occupation numbers. In a large list of orbitals, user can temporarily hide orbitals from the list or can use filtering utility to select a subset of orbitals according to one or several criteria (orbital type, symmetry, energy, occupancy). Orbitals in luscus are shown as isosurface of wavefuction value [20,21] in three dimensions. If an orbital wavefunction has a negative part, two isosurfaces are shown; one for positive and another for negative value of a wavefunction. Contour value, transparency and colour of isosurfaces can be adjusted. Also all orbitals can be plotted in a separate window as a series of small displays (see section Examples for more details). That way the orbitals can be easily compared through the visual inspection. Each of orbital in a small display is fully rotatable with mouse movements as well as the orbital in the main window. In addition, an orbital can be assigned to the active space by clicking a middle mouse button on an orbital display. In addition to displaying orbitals, luscus can display electron density of a molecule as an isosurface in the same manner as orbitals. There is a possibility of displaying other physical quantities that are spatially distributed like orbitals and electron density.
Orbitals and electron densities are represented as surfaces that engulf molecules. These surfaces can be used for displaying electrostatic potential, by colouring these surfaces according to the value of electrostatic potential. This functionality is usually used with the display of electron density surface since the display of electron density usually resembles on the molecule surface and that way a distribution of electrostatic potential can be visualised across the entire molecule.
Luscus can also combine several orbital files and perform simple arithmetic operations with them. This feature is very useful for construction of spin-density or for displaying of electronic transition or charge transfer.
Structures from several files can be shown in the same orientation and size, since this information can be saved and retrieved upon opening another file.
In this section we give some examples of scientific visualisation done by luscus, based on recently published or on-going research in our group.
Using symmetry for building molecules
Luscus is able to use symmetry operations in construction of symmetric molecules, which we will demonstrate by building Ar’-Cr-Cr-Ar’ complex, which was studied at . This complex was a subject of several studies since it contains unusually short Cr-Cr bond. While building the complex it is important to make it as symmetric as possible in order to reduce the size of the calculation. This calculation was performed within multiconfigurational complete active space (CASSCF) approach. Without usage of symmetry such calculation will be impossible to carry out.
Building clusters and periodic structures
Molecular clusters or periodic systems require a special attention. The GUI should be able to handle translation symmetry and have capability to highlight certain structural elements. In the following example we will construct a fragment of tobermorite structure, which was used as initial structure in modelling calcium silicate (C-S-H) nanoparticles . C-S-H nanoparticles are the building blocks in the formation of Portland cement, and the study of their structures can help to understand the properties of cement-based materials.
Displaying molecular orbitals
The shape of molecular orbitals and electronic density is essential for understanding chemical boning in molecules.

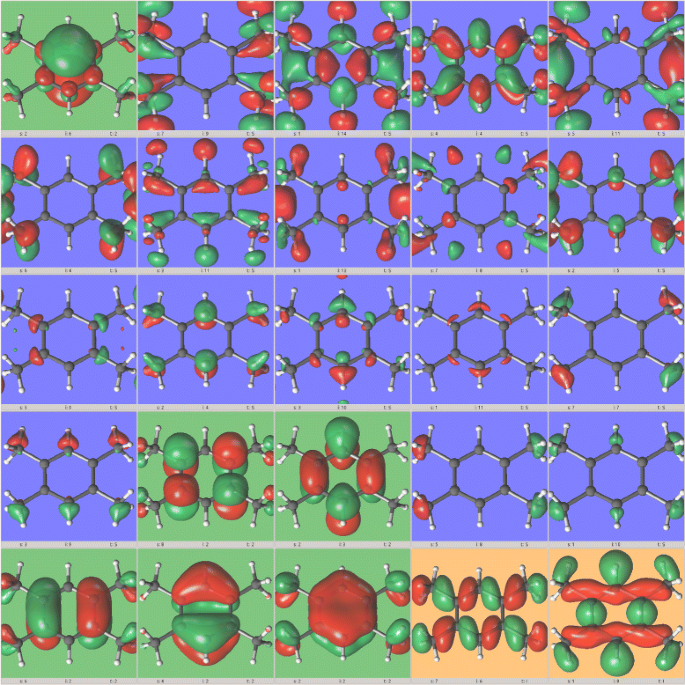

Selection of active space
The selection of active space in multiconfigurational calculations is most difficult and hardly automatised procedure . Visual inspection of orbitals allows to select active space based on certain characteristics of orbitals, such as the shape and localisation.
Electrostatic potential is demonstrated on the example of calcium-silicate-hydrate (C-S-H) platelet. C-S-H is a phase that forms during the crystallisation of Portland cement and is responsible for hardening of concrete and thus for its mechanical properties. It crystallises in form of small crystallises, 30–60 nm in diameter and 5–10 nm in height [27,28]. Interaction between C-S-H platelets were extensively studied with course grained models. Since charge distribution of C-S-H platelets is unknown and experimental measurements provide only indicative information, charges used in course-grained models are largely approximate. More realistic charge distribution in a C-S-H platelet can be obtained by calculating atomic charges in a C-S-H. In Figure 1, a charge distribution of a modelled C-S-H crystallite is shown. The charge is calculated with ReaxFF SiO force field, by electron equilibration method for each atom in the model. The electrostatic potential is calculated from this point charges and projected onto the crystalline surface.
Dipole moments of water in a droplet
Luscus is a new graphical user interface program, which works as a native counterpart to computational code MOLCAS, but in the same time can be easily connected to other computational codes using external plug-ins. The code is fully portable to various operating systems, and it depends only on a minimal set of external libraries. The main purpose of luscus is to provide state of the art support for advanced computations in quantum chemistry.
Project name: luscusProject home page: http://sourceforge.net/projects/luscus/ Operating system(s): Linux, Windows, Mac OSProgramming language: COther requirements: gtk+-2.0 or gtk+-3.0, OpenGLLicense: Academic free licenseAny restrictions to use by non-academics: NO
The development of luscus software was sponsored by MOLCAS project.
